The V-Cone and External Vibrations

Contrary to the popular Beach Boys song, vibrations aren’t always good – especially when they interfere with the functionality of your flow meter. In busy spaces where neighboring equipment gives off varying frequencies, having a flow meter that can mitigate surrounding noise and provide accurate, reliable flow readings are critical to achieving operational efficiencies.

The V-Cone® does just that – despite the complexities of many flow applications, the V-Cone stands up to vibrational resonance.

Here’s the basic overview.

What Causes Vibrational Resonance?

Typically, in many oil and gas and industrial applications, the meter is close in proximity to equipment like pumps, dynamic control valves and other mechanical hardware emitting cyclic noise or significant vibrational resonance.

This tends to occur more in certain applications experiencing a high pressure, high-velocity flow such as a compressor discharge, or in high-pressure gas lines.

Vortex shedding frequencies occur when flow passes over an obstruction such as a butterfly valve. This can cause vibrational resonance, especially if the obstruction isn’t mounted rigidly.

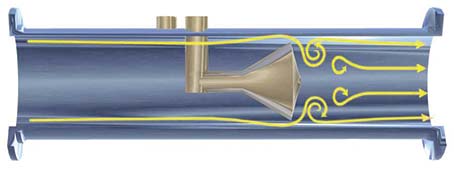

The centrally-located cone directs flow to the outside wall, effectively conditioning disrupted flows.

The centrally-located cone directs flow to the outside wall, effectively conditioning disrupted flows.



Planning for Vibrational Resonance in Your Flow Project

Often, the engineers and operations professionals managing a flow measurement project cannot perfectly predict what acoustics and frequencies will be present near their installation site – and we get it! Vibrational resonance is a very complex subject, and large flow projects rarely have one person managing every aspect of the project design. Many professionals with niche expertise come together to provide their recommendations for the pump, the securing and dampening of the pipes, the meter, and more – and the complexity of planning can obscure the big picture of how the surrounding environment will affect the meter.

Knowing what vibrations exist and what equipment is articulating at certain frequencies and amplitudes prior to implementing a meter is often extremely difficult. It’s often discovered post-mortem once a part rattles loose in the equipment, causing the need for shutdown and repair.

Implementing a meter that withstands whatever vibrational resonance is nearby is a must to keep your pipeline operating.

How the V-Cone Accounts for Vibrational Resonance

The structure of the V-Cone, including the vertical and horizontal supports, is built to withstand external vibration. The V-Cone’s customizable nature allows it to meet demanding application requirements. In addition to a wide variety of exotic materials available for manufacturing, the V-Cone can also be modified in design, such as a reduction of the mass of the cone, to keep the meter as light and rigid as possible. Depending upon the demands of the application, a variety of gussets are included to support the cone and provide durability, including pin gussets on small line size meters, and pipe gussets on larger line sizes. The gussets support the cone in any condition; the end goal is always the same, but the method in which the McCrometer engineering team achieves that goal varies based on the customer’s flow conditions, line size, application, and more.

Not all applications are the same, and the V-Cone is not an “off the shelf” product. The flexibility of the V-Cone allows it to maintain its durability and 25+ year lifespan in the toughest and most challenging environments, including those with external vibrations.

The Challenge of Vibrational Resonance

McCrometer engineered a custom V-Cone design for a project in 2018, when a customer had purchased a competitor’s cone-style meters for a natural gas application and due to the high-pressure, high-velocity flow properties, two of those cone meters failed.

This gave McCrometer an opportunity to work with the midstream gas customer on a solution for their 16” diameter line size, resulting in the engineering, development, and testing of various gusset designs and parameters in which they’re to be used. In order to maintain the rigidity of the cone and withstand the surrounding external vibrations (exacerbated by the high pressure, high velocity of the natural gas flow), McCrometer installed three V-Cones using our patented design incorporating pipe gusset supports both upstream and downstream of the cone. This design had not yet been implemented in V-Cones of that pipe diameter until this project.

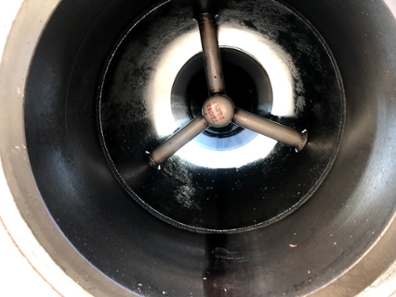

A close-up of the three pipe gussets on one of the 16” diameter V-Cones.

A close-up of the three pipe gussets on one of the 16” diameter V-Cones.

A year after the meters were installed, the oil and gas customer reported the custom V-Cones operating as intended, reading accurately and withstanding surrounding vibrational resonance.
