Flow Meters for Fire Protection Agencies
The Crucial Role of Flow Measurement in Ensuring Safe and Compliant Fire Hydrants
Fire hydrant flow meters are critical for validating hydrant water flow during non-firefighting operations, ensuring adequate water supply and preventing overloading during critical firefighting operations. The time to find out there is an issue is not during an emergency. The National Fire Protection Association requires fire hydrants to provide a specific flow capacity, defined as a water supply measured at 20 PSI residual pressure available for manual firefighting. The fire code NFPA 291 requires fire hydrant flow tests every 5 years and annual inspection by city officials or professional contractors.
Accurate and reliable flow measurement devices not only keep hydrants in compliance with the fire code, but can also help identify issues such as leaks, blockages, and inefficiencies, improving system performance and reducing costs. Choosing the right flow meter can make hydrant testing easy and provide trusted flow data.

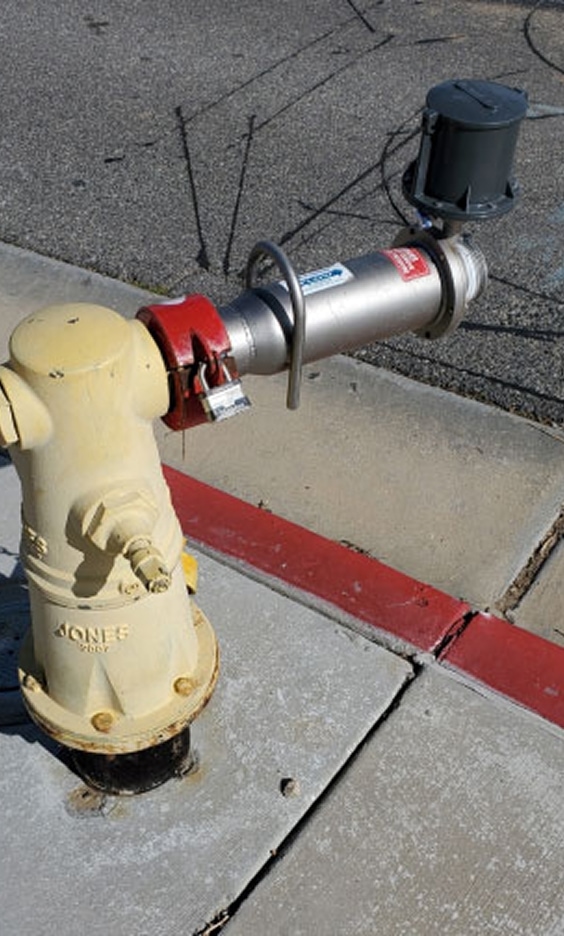

Why Invest in a Hydrant Propeller Meter?
1. Simpler and more accurate than pitot gauges
Field personnel and city contractors who use pitot gauges are required to manually interact with the meter during measurement to gain a reading. The downfalls of this measurement device often lie with user error; measurement of the inside nozzle diameter, manual back-to-back readings of residual pressure, and physically holding the pitot tube all have the potential for human error.
Choosing a propeller meter streamlines the entire measurement process. Installation is incredibly simple and secure, and the flow meter provides a totalizer flow in gallons per minute without the need for calculation. Additionally, pitot tubes only measures flow velocity at one point within the flow stream, potentially producing an inaccurate reading due to velocity profile changes.
2. Durable and transportable
While pitot tubes can be hot-tapped, it’s often the grooved end or clamp-on propeller meter that is chosen for its durability and quick installation. Constructed of epoxy-coated carbon steel or even stainless-steel, the Mc ®Propeller features a high-temperature polymer impeller. Nonetheless, the meter is lightweight and portable, featuring carrying handles for easy transportation. Stator vanes located in the inlet of the flow tube generate steady, non-rotational water flow for greater accuracy.
3. Data output options
The hydrant McPropeller offers 3 registers, two of which offer output options such as 4-20mA or pulse, and ability to integrate additional sensors such as pressure and temperature. For additional data recording, the FlowConnect™ telemetry unit offers real-time data monitoring through a web application, providing data tools that can analyze flow rate, consumption, and possible anomalies.
Propeller Meters Designed for Water Flow Measurement
Designed for Easy Transportation and Installation

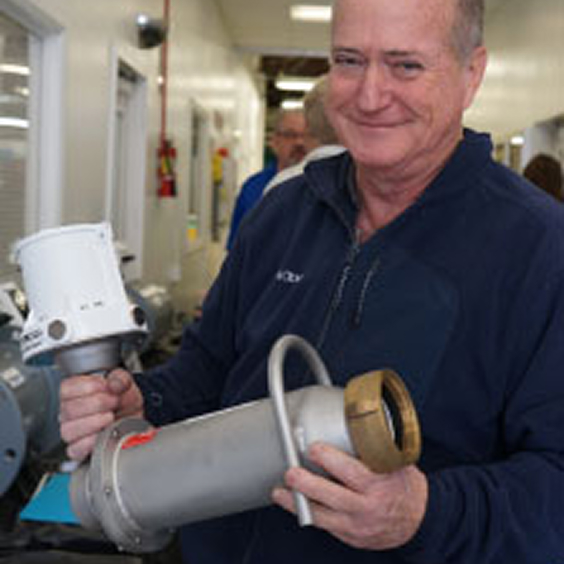

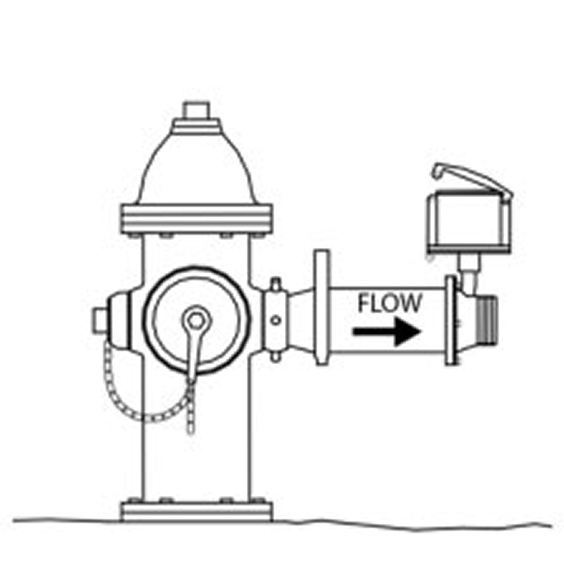

Threaded or grooved ends compatible with grooved couplings, handles, and a lightweight stainless-steel construction makes the McPropeller M1100 a popular choice for users on the go! McCrometer understands that when city personnel and contractors need to efficiently test a fire hydrant and don’t have the time to fuss with complex installations or meters that cannot handle frequent transportation in the back of a truck.
Stator vanes located in the inlet of the flow tube generate steady, non-rotational water flow for greater accuracy. The swivel race and outlet threads are stainless steel for trouble-free hook up. If ease of use and accurate flow data is the goal, the M1100 McPropeller delivers. Eliminate the potential for human error and get the data you need to meet regulatory requirements!
How to Choose a Register?
McCrometer’s propeller flow meters are accompanied by either a mechanical register, digital FlowCom™ register, or FlowConnect™ telemetry unit. If you’re wondering what option is best for your flow application, consider this question: what caliber of data output and automation works for you?
If manually reading and recording the flow rate and totalizer data isn’t a problem, then a mechanical register will suit your needs just fine. If receiving flow data via pulse or 4-20m A signal provides more convenience and automation to your daily processes, the FlowCom™ digital register is highly beneficial. For the utmost in automated data collection, the FlowConnect™ telemetry unit eliminates manual meter reading and transmits readings to a cloud database, which you can view on a PC or cell phone.
Knowledge Center
McCrometer Fire Protection Agency Flow Meter Suite of Products
McCrometer’s propeller meters are the economical choice for water flow measurement.
V-Cone
- Minimal-to-no straight run required
- Flanged, threaded, hub or weld-end standard; other end connections on request
- Materials of construction matched to your pipe specifications
- Up to 1,600 °F (870°C)
- Up to 20,000 PSI, ±0.5% accuracy
- 0.5” – 120” and larger line sizes available
- 25+ year lifespan
Ultra Mag 3000
- Offering +/- 0.1% accuracy, this now enables our customers to have the great features and benefits of the Ultra Mag and ProComm Go transmitter within higher accuracy applications.
Ultra Mag 5000
- The Ultra Mag features an NSF-approved fusion-bonded epoxy UltraLiner™ and a lifetime liner guarantee, eliminating the risk of delamination and liner separation, and is ideal for applications near pumps, water wells, and other municipal locations.
FPI Mag 3000
- The insertion design allows for easy, hot tap installation, which allows the meter to be installed without interrupting service
- No moving parts and a single-piece probe design.
- Available in configurations that meet Build America, Buy America (BABA) Act requirements.
- Accuracy: ±0.5%
FPI Mag 5000
- Designed for more critical infrastructure where continuous monitoring and integration with SCADA systems are essential. Its dual 4-20mA outputs, RS485 communication port, and intuitive interface make it a fully capable device for demanding municipal applications.
FPI Mag Plus 3000
- Provides an astonishing ±1% accuracy on a battery powered, remote installation meter with AMR/AMI and telemetry ready outputs.
- Ideal for sites that have never before been metered.
- Line Size: Up to 130"
FPI Mag Plus 5000
- Line size options from 4" to 128"
- Up to 0.5% accuracy
- A/C and DC power options
- Can withstand between 14F to 160F degrees
- Integrates with HART, 4-20mA, Pulse, Sensus, Modbus, Ehternet IP, Neptune
