Submerged AV Sensor
SKU:
SXSAV
Product Family:
Submerged Area Velocity Sensor
Designed to deliver accurate and reliable measurements in wastewater flow applications, our Submerged AV Sensor incorporates a pressure transducer to measure flow level, utilizing advanced technologies to automatically correct for temperature and velocity effects on measurements, ensuring precision in various conditions.

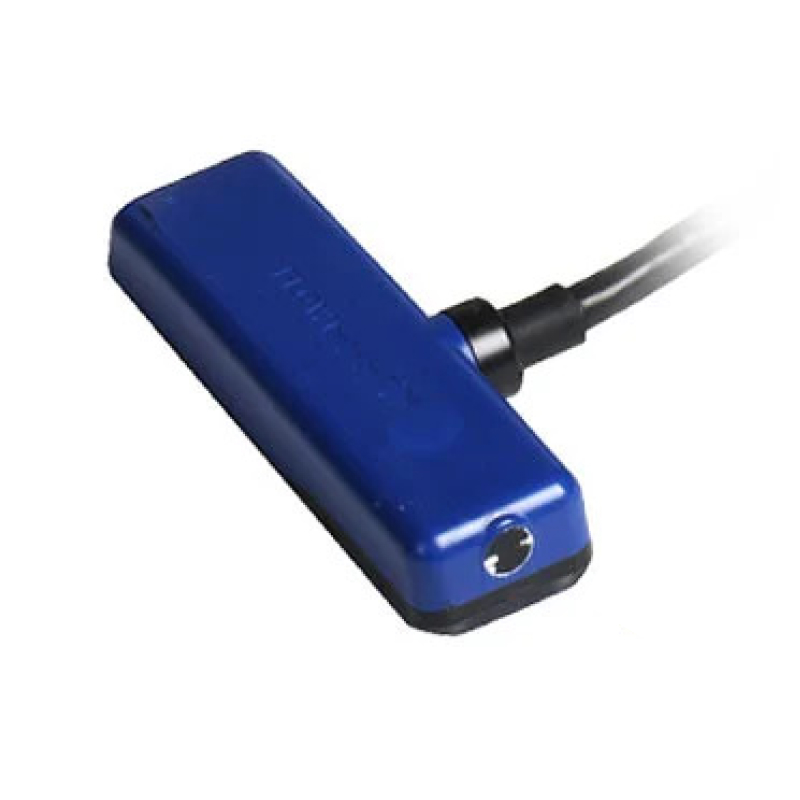

The Submerged Area Velocity (AV) Sensor, a Hach Flow solution by McCrometer, is a durable 1 MHz Acoustic Doppler sensor engineered for monitoring sites prone to pressure transducer fouling. The Submerged AV Sensor is compatible with Hach flow meters, FL series flow loggers, and AS950 samplers, making it a versatile tool for measuring flow rates in open channels.
Key Benefits and Features
The sensor’s cavity is filled with high-viscosity silicon oil, which reduces the buildup of sand, silt, and grit on the pressure transducer; it is available in both oil-filled and non-oil-filled versionsmaking this adaptable to different site conditions. The non-oil-filled sensor is ideal for relatively clear sites or where the pipe may dry out, while the oil-filled version is best suited for environments with high levels of biological growth, grit, or silt.
Additionally, the module includes advanced diagnostics, such as capturing and displaying the Doppler spectra, allowing you to verify sensor performance on-site, ensuring everything is functioning correctly before you leave, which provides valuable peace of mind. These thoughtful design options minimize maintenance requirements and prevent data loss, addressing common challenges in flow monitoring.
- Single-point calibration
- Robust Sensor
- Streamlined Design
- Minimal Sensor Fouling
Single-Point Calibration
Ability to calibrate the sensor and adjust it to read accurately at one specific value of the parameter being measured, also known as a “single known reference point”; this helps to measure flow rate, pressure, or temperature.
Robust Sensor
The sensor can withstand conditions such as harsh chemicals, extreme temperatures, high flow velocities, and abrasive or corrosive materials without degrading in accuracy or requiring frequent maintenance.
Streamlined Design
Sleek and efficient physical configuration that minimizes obstructions to fluid flow, reducing pressure loss and turbulence within the system.
Minimal Sensor Fouling
Oil-filled Submerged AV sensor models are great solution for monitoring sites that are susceptible to fouling of the pressure transducer. The cavity is filled with high-viscosity silicon oil to reduce the collection of sand, silt and grit on the pressure transducer. Use the non-oil-filled cover plate model in sites where the pipe could run dry. Either way, we’ve thought about the little details that will reduce your maintenance or lost data hassles.
Specifications
| Accuracy | VELOCITY MEASUREMENT: ±2% of reading or 0.05 fps** LEVEL MEASUREMENT: ±0.16% full scale ±1.5% of reading at constant temp (±2.5ºC) ±0.20% full scale ±1.75% of reading from 0 to 30ºC (32 to 86ºF); ±0.25% full scale ±2.1% of reading from 0 to 70ºC (32 to 158ºF) Velocity-Induced Depth Error Compensated based on flow velocity |
|---|---|
| Allowable Level | Standard: 10.5 m (34.5 ft) |
| Cable | Urethane sensor cable with air vent |
| Cable Length | Options from 30- 100 ft |
| Compatible Instruments | 920, 930, 930T, 950, 900 Max Samplers, and AV9000 Interface Analyzer Module |
| Depth: Operating Unit | Typical Minimum Operating Depth 2 cm |
| Level Accuracy | ±0.16% full scale ±1.5% of reading at constant temp (±2.5ºC) |
| Level Measurement Method | Differential pressure transducer with stainless steel diaphragm and atmospheric pressure reference |
| Level Range | 0 to 10 ft range |
| Material | Noryl outer shell with epoxy potting within |
| Measurement Method | LEVEL: Pressure transducer with stainless steel diaphragm |
| Oil or Non-Oil Filled | Oil filled with connector |
| Operating Temperature Range | 0 – 70 °C |
| Recommended Range | -1.52 to 6.10 m/s (-5 to 20 ft/sec) |
| Special Features | Oil Filled, 30 ft cable |
| Typical Minimum Operating Depth | 2 cm (0.8cm) |
| Velocity Accuracy | ±2% of reading or 0.05 fps** |
| Velocity-Induced Depth Error | Compensated based on flow velocity |
| Velocity Measurement Method | Doppler ultrasonic; twin 1 MHz piezoelectric crystals |
