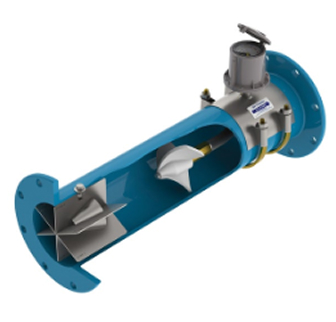

FS100 Flow Straightener
- Straightening vanes to generate optimum flow profiles
- Requiring only 1.5 straight pipe diameters upstream and 0-0.5 downstream
- Compatible with line sizes 6” – 8”
- Epoxy-coated carbon steel body; all stainless available
Flow Straighteners
Advanced Flow Straightening with Propeller Technology
Farmers, irrigation dealers and water district engineers will find the McCrometer Mc Propeller Meter and the Flow Straightener are the ideal solution for water metering programs in agriculture and turf irrigation. The Mc Propeller’s advanced design delivers highly accurate liquid flow measurement in a rugged space-saving design that reduces installation costs, offers long-life and requires minimal maintenance.
The Flow Straightener provides breakthrough flow straightening technology that virtually eliminates the upstream / downstream straight pipe runs typically required in existing or new flow meter applications.
Requiring only 1.5 straight pipe diameters upstream and 0-0.5 downstream, the FS100 Flow Straightener when installed with the McPropeller slashes typical installation piping and labor costs by more than 50 percent, which makes it the right fit in both retrofit and brand new installations.
Shop
All Flow Straighteners
FS200 Flow Straightener
- Straightening vanes to generate optimum flow profiles
- Requiring only 1.5 straight pipe diameters upstream and 0-0.5 downstream
- Compatible with line sizes 10” – 12”
- Epoxy-coated carbon steel body; all stainless available
Filter Downloads
| File Name | Category | Language | Size | Date | Edition | |
|---|---|---|---|---|---|---|
| The Challenge of Flow Disturbances on Meter Accuracy | Articles | English US | 2 MB | 2023-06 | 1.0 | |
| Mc SpaceSaver Brochure | Brochures | English US | 7 MB | 2019-07 | 1.2 | |
| Mc SpaceSaver Flow Straightener Specification Sheet | Data Sheets | English US | 532 KB | 2019-07 | 1.5 | |
| Flow Straightener and Straightening Vane Installation Guide | Manuals | English US | 3 MB | 2021-01 | 1.0 | |
| Installation Instruction FS100 on MF100/MG100/ML100 | Methods/Procedures | English US | 195 KB | 2019-07 | 1.3 | |
| Mc SpaceSaver Sales Brochure (Spanish) | Brochures | Spanish | 7 MB | 2019-07 | 1.0 | |
| Mc SpaceSaver Flow Straightener Specification Sheet (Portuguese) | Data Sheets | Portuguese | 537 KB | 2019-07 | 1.5 | |
| Mc SpaceSaver Specification Sheet (Spanish) | Data Sheets | Spanish | 558 KB | 2019-07 | 1.5 |
