Flow Meters for Municipal Water Applications
The Benefits of McCrometer Flow Meters for Municipal Water Applications
Thousands of instrument engineers at municipal wastewater facilities and industrial process plants with wastewater treatment operations have found McCrometer flow measuring devices provide superior accuracy, long life, trouble free installation, and low total cost of ownership.
Problems This Solves:
- Accurate flow measurement to 0.5% of flow
- Measures raw wastewater, effluent water, sludge
- Installation without flanges, cutting line, or welding pipes
- Improved uptime, reduced pipe shutdown
- Meter arrives calibrated to user’s specific applications
Worry-Free Wastewater Metering with advanced Electromagnetic Technology
McCrometer Ultra Mag® with the Advanced UltraLiner™
McCrometer’s Ultra Mag, and advanced inline magnetic flow meter, features the cutting-edge UltraLiner, an NSF-approved, fusion-bonded epoxy liner resulting in superior resistance against abrasion and corrosion. The UltraLiner provides a highly protective coating for outstanding electrical insulation, which gives users an exceptionally accurate, reliable and durable flow measurement solution.
- Non-invasive, no moving parts flow sensing technology
- Accuracy 0.5% of actual flow
- Calibration pre-programmed to user’s specific applications
- Measures liquid flow in 2 to 36 inch
- Operates in high temperatures up to 170°F
McCrometer FPI Mag® Next Generation Magnetic Flowmeter

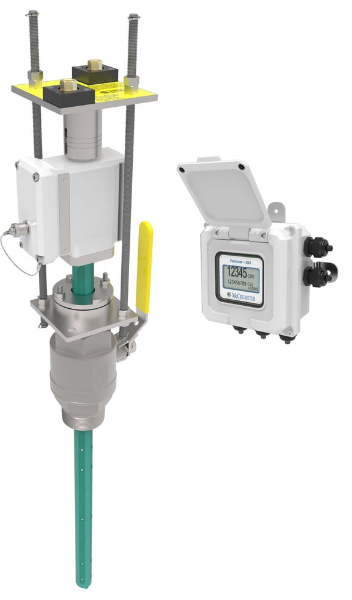

McCrometer’s FPI Mag features a unique design which allows for easy installation across a wide range of applications and pipe sizes ideal for measuring effluent, recycle or reclaim water. The meter can be installed and removed in lines under pressure resulting in significant cost savings and greater budget flexibility.
- Flanges, welding and pipe cutting are not required to install the FPI Mag
- Ideal for retrofits, upgrades, maintenance projects and new site metering
- Accuracy: ± 0.5% from 1 ft/s to 32 ft/s (0.3 m/s to 10 m/s) ± 1% from 0.3 ft/s to 1 ft/s (0.1 m/s to 0.3 m/s)
- Calibration pre-programmed to user’s specific applications
- Measures liquid flow in 4” to 138” (100mm to 3,500 mm)
Knowledge Center
All Products for Municipal Water Applications
Here you will find industry-leading flow meters and monitoring solutions for municipal water applications.

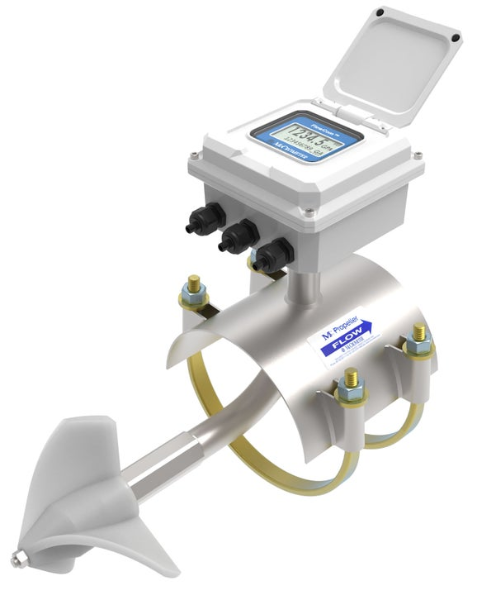

Best Selling Propeller Meter in the U.S.

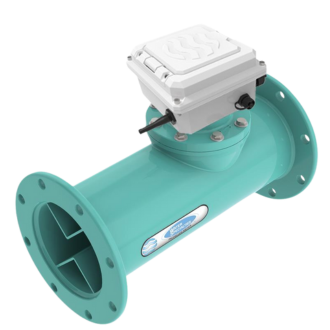

The Classic Meter for Clean Water Flows
The Ultra Mag features an NSF-approved fusion-bonded epoxy UltraLiner™ and a lifetime liner guarantee, eliminating the risk of delamination and liner separation, and is ideal for applications near pumps, water wells, and other municipal locations.
The Ultra Mag features an NSF-approved fusion-bonded epoxy UltraLiner™ and a lifetime liner guarantee, eliminating the risk of delamination and liner separation, and is ideal for applications near pumps, water wells, and other municipal locations.
The unique combination of reliability, ease of installation and total cost savings make this flow meter the perfect choice for municipal water and wastewater effluent applications and flow media.
Designed for more critical infrastructure where continuous monitoring and integration with SCADA systems are essential. Its dual 4-20mA outputs, RS485 communication port, and intuitive interface make it a fully capable device for demanding municipal applications.
The SPI Mag 3000 Meter provides a highly cost-effective solution for the accurate measurement of liquid flow in closed conduit, pressurized pipe applications with the ProComm GO as a major highlight.
Paired with the ProComm for enhanced data communication and integration, the SPI Mag 5000 uses velocity and pipe diameter information to measure flow accurately across a wide range.
The FLO-DAR® AV Sensor provides an ideal solution for non-contact, maintenance-free portable or permanent sewer flow monitoring.

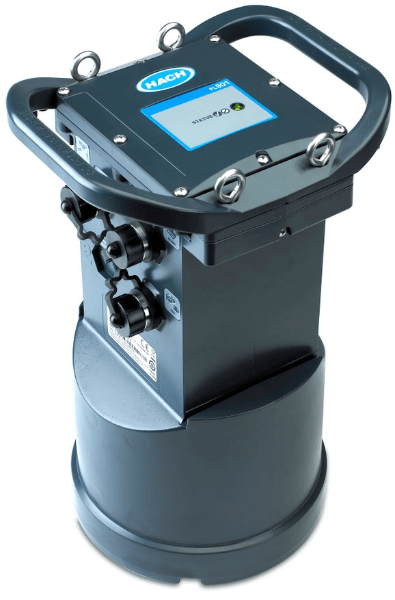

The FL900 Series Flow Logger revolutionizes remote, open channel flow monitoring by providing rugged and reliable innovative solutions for any sewer flow measurement challenge.
Hach's handheld, battery-powered FH950 Velocity & Depth Flow Meter was designed to provide accurate velocity and depth measurements while simplifying the entire measurement process in rugged field environments.
This multi-channel controller can handle up to four independent flow sensors. The FL1500 can also be paired with peripheral equipment such as a rain gauge, pH sensor, auto sampler, and mechanical totalizer.
