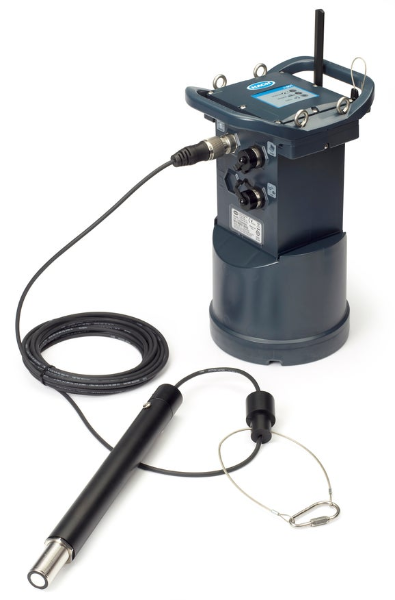

The US9000 takes the innovation of the Down-Looking Ultrasonic Sensor and integrates cable-straightening ballast, creating a robust solution for SSO (Sanitary Sewer Overflow) and CSO (Combined Sewer Overflow) alarming.
When paired with a wireless Hach FL900 Series Flow Logger, this sensor provides a dependable and cost-effective approach to monitoring, with top-side mounting options that eliminate the need for confined space entry. This makes installation and maintenance both quick and straightforward, offering an economical method to expand your monitoring network without exceeding your budget.
By using the proven accuracy of the FLO-DAR® AV Sensor for critical primary sites and the US9000 for secondary locations, you can significantly enhance your system’s coverage while staying within financial constraints. Additionally, you can utilize Manning’s equation to gather further flow data.
The Hach US9000 Ultrasonic Sensor Series offers a range of independent level-measuring options, giving you multiple ways to ensure consistent and accurate flow data collection. These cutting-edge, non-contact sensors excel in both level measurement and alarming, or when paired with a Submerged AV sensor for added redundancy in level measurement.
Please note: any missing or technical issues for inputting order information may cause delays. Larger orders are subject to longer production times. Contact your seller or the factory for more information.
The Hach US9000 Ultrasonic Sensor Series provides you with a variety of independent level-measuring capabilities, giving you even more ways to ensure your flow data collection is consistent and accurate.
These state-of-the-art non-contact sensors are excellent for both level measurement and alarming, or paired with a Submerged AV sensor for redundant level measurement.
Combined with a wireless Hach FL900 Series Flow Logger to transmit data and alarms right to your desktop or mobile phone, these ultrasonic monitoring and alarming solutions from Hach are extraordinarily convenient.
Real-time data is available 24/7 through FSDATA Online Data Manager software from anywhere you have internet access. Not only does this dramatically increase your timely knowledge of every event, it also reduces site visits for data collection, meter adjustments, or sensor cleaning.
Smoother design enhances the sensor’s ability to provide accurate measurements by allowing fluids to move smoothly across the sensor without causing disruptions.
The design and material of our sensor reduces the buildup of debris, biological material, or sediment on the sensor’s surface.
| Accuracy | 0.2 mm/25.4 mm (0.008 in./in.) from the calibration point at steady state temperature, still air and ideal target |
|---|---|
| Beam Angle | 9° (half angle typical) |
| Cable Diameter | 6.10 mm (0.24 in.) |
| Cable Jacket Material | Polyurethane |
| Cable Length | 9.14 m (30 ft), 91.44 m (300 ft) maximum |
| Certifications | European Conformity (CE Certification) |
| Compatible Instruments | FL900, FL1500 |
| Dimensions | Ø x L: Ø 3.02 x 10.31 cm |
| Enclosure Construction | 316 stainless steel |
| Enclosure Rating | Rated IP68 / NEMA 6P |
| Frequency | 120 kHz |
| Mounting | Wall mount, adjustable arm mount |
| Operating Temperature Range | –18 to 60°C (0 to 140°F) |
| Power Requirements (Voltage) | 12 VDC, 0.0416 A, 0.5 W |
| Range | 13.34 to 396.24 cm (5.25 to 156 in.) |
| Resolution | 2.54 mm (0.01 in.) |
| Standard storage temperature | –40 to 60°C (–40 to 140°F) |
| Weight | 0.76 kg (1.68 lb) with 9.14 m (30 ft) cable |
| File Name | Category | Language | Size | Date | Edition | |
|---|---|---|---|---|---|---|
| US9000 Ultrasonic Sensor Series: Flow Monitoring & Level Alarming | Data Sheets | English US | 998 KB | 2024-09 | Sept24 | |
| Installation Instruction: Extension Cable 9487500 | Manuals | English UK, English US | 372 KB | 2024-10 | Ed3 | |
| Installation Instruction: Suspension with Ballast 9088200, 9088800, 9088801 | Manuals | English UK, English US | 1 MB | 2024-10 | Ed4 | |
| User Manual: US9001/US9003 | Manuals | English US, French, Spanish, Portuguese, Japanese, Chinese | 1 MB | 2024-10 | Ed4 | |
| User Manual: US9001/US9003 (English UK) | Manuals | English UK | 1 MB | 2024-10 | Ed4 |
The BL9000 Bubble Level Sensor is as straightforward as it gets to measure water level. Designed to be a robust, reliable, and accurate sensor, the BL9000 includes simple tubing and bubble pressure, providing level measurements you can rely on.

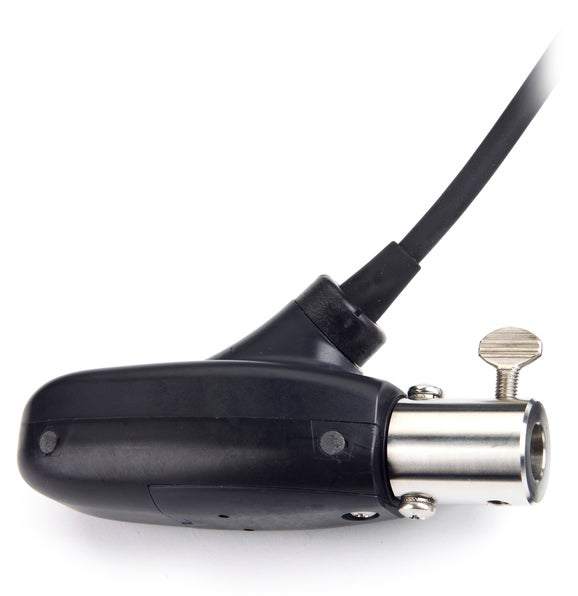

Paired with the FH950 Handheld Flow Meter, the EM950 is a highly efficient way to profile rivers and streams, verify wastewater flow data, or identify ideal metering locations for wastewater flow monitoring.

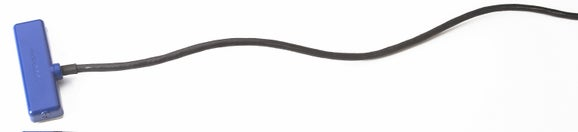

Submerged Area Velocity Sensor
