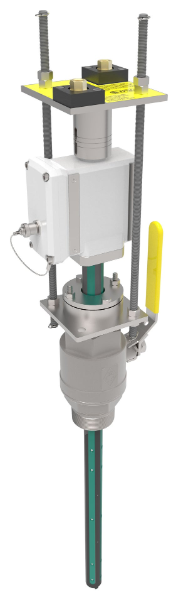

FPI Mag Plus 5000
SKU:
FPIP5K
Product Family:
The FPI Mag Plus 5000 is available in configurations that meet Build America, Buy America (BABA) Act requirements for federally funded infrastructure projects. Choosing BABA-ready instrumentation simplifies the approval process and protects your federal funding from redesigns or change orders.
The FPI Mag Plus 5000 electromagnetic flow meter is ideal for capital or maintenance projects, retrofits, and sites that have never before been metered.
The unique combination of accuracy, ease of installation and total cost savings make the FPI Mag Plus 5000 the perfect choice for Industrial hot water, cooling water and wastewater applications.
Key Benefits and Features
McCrometer’s multi-electrode design and unique operating principle, delivers accuracy unmatched by other insertion meters and rivals the performance of full-bore mag meters.
The true strength of the system lies in pairing it with the ProComm Max signal transmitter. This powerful combination elevates your flow measurement capabilities to new heights, delivering superior performance across various applications.
This next generation of insertion technology makes flow monitoring efforts simple and precise.
Accuracy that Meets or Exceeds Industry Standards
The FPI Mag Plus 5000 meets or exceeds exacting industry standards of 0.5% accuracy with 3rd party testing verification.
Easily Connects to AMI / AMR Systems
The FPI Mag Plus 5000 is available in forward and bi-directional flow sensors, enabling installation where needed. The Smart Output feature allows the FPI Mag Plus 5000 to connect to AMI / AMR systems through an encoded digital output.
Insertion Design Allows for Simple Installataion
The insertion design allows for easy, hot tap installation, which allows the meter to be installed without interrupting service, de-watering lines, cutting pipe, welding flanges, or inconveniencing customers.
No Moving Parts
The FPI Mag Plus 5000 has no moving parts and a single-piece design. The multi-electrode water flow sensor contains nothing to wear or break and is generally immune to clogging by sand, grit or other debris.
Robust Constructions
The sensor body is made from heavy-duty 316 stainless steel for maximum structural integrity and is hermetically sealed and protected by NSF certified 3M fusion-bonded epoxy coating. Electrodes are constructed from stainless steel as a standard and Hastelloy as a custom option.
Applications
The FPI Mag Plus 5000 is designed for the following applications:
- Hot Water up to 200°F
- Chill Water
- Cooling Water
- Chiller Bypass
- Effluent
- Feed Water
- And More
Specifications
| Accessories |
|
|---|---|
| Accuracy | Calibrated accuracy for forward and bidirectional sensors |
| Body material | Fusion bonded epoxy (NSF 61 approved) coated 316 stainless steel |
| Certifications | Standard model:
HL model:
*Certified by IAPMO R&T to NSF/ANSI 61 for material safety and NSF/ANSI 372 for low lead content. |
| Converter |
|
| Directional Response | Directional / Bidirectional Direction Measurement:
|
| Electrical Connections |
|
| Electrode | 316 Stainless Steel |
| IP Rating | Standard model: Quick Connect (IP68), Compression gland seals (IP68) |
| Linearity | 0.3 % of Range |
| Line size | Up to 138″ |
| Material |
|
| Measurement Method | Volumetric flow in filled flow conduits 4” (100 mm) to 138” (3,500 mm) utilizing insertable electromagnetic averaging sensor. Flow indication in English Standard or Metric units. |
| Mounting | Converter: Remote mount |
| Operating Conditions | 10 to 60 °C (14 to 140 °F) up to 250 PSI |
| Options |
|
| Output |
|
| Power | ProComm Max Transmitter can use AC power or DC power |
| Repeatability | 0.2% of reading |
| Requirements | Pipe run requirements for the FPI Mag sensor can vary, depending on the disturbances in the pipe run. See FPI Mag flow meter manual 30126-03, step 3 of the installation procedure for a table of upstream and downstream straight-pipe run recommendations. |
| Seal material | 316 Stainless Steel |
| Sensor Cable | Standard: 25’/7.6 m McCrometer supplied submersible cable with each remote mount unit.
Custom cable lengths at additional cost. |
| Sensor Immersion Depth |
|
| Storage Conditions | -15 to 60°C (5 to 140 °F) |
| Velocity Measurement Range | See FPI Plus Series Specification Sheet, 30126-01, for flow meter pipe sizes and flow ranges with ProComm Max Transmitter. |
| Warranty | 24 months |
Filter Downloads
| File Name | Category | Language | Size | Date | Edition | |
|---|---|---|---|---|---|---|
| Flow Meters for HVAC Brochure 30125-71r11 | Brochures | English US | 4 MB | 2024-09 | 1.0 | |
| Flow Meters for Industrial Application Brochure 30125-79r11 | Brochures | English US | 5 MB | 2024-09 | 1.1 | |
| FPI Mag Plus Brochure 30127-21r10 | Brochures | English US | 3 MB | 2024-09 | 1.0 | |
| FPI Mag Plus Specification Sheet 30126-01r10 | Data Sheets | English US | 725 KB | 2024-08 | 1.0 | |
| FPI Mag Plus 5000 Quick Start Guide 30126-50r10 | Manuals | English US | 5 MB | 2024-09 | 1.0 | |
| FPI Mag Plus 5000 IOM Manual 30126-04r10 | Manuals | English US | 5 MB | 2024-08 | 1.0 | |
| ProComm Max Transmitter Manual 30126-48r11 | Manuals | English US | 28 MB | 2024-11 | 1.1 |
