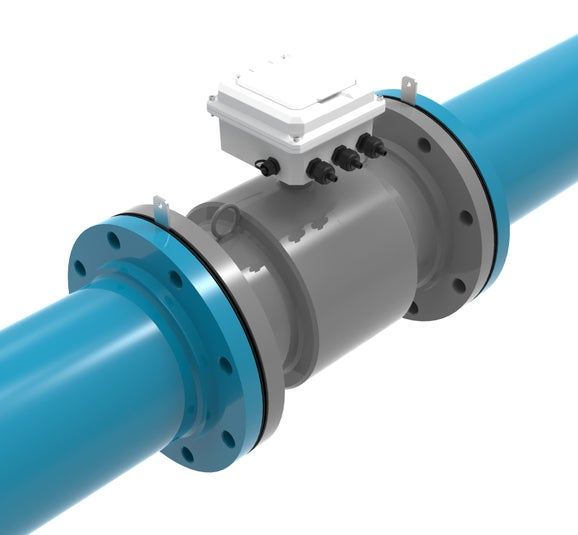

Field Mag 3000
Field-Proven Electromagnetic Flanged Flow Meter
Dura Mag
SKU:
DM001
Product Family:
The Dura Mag battery powered electromagnetic flow meter represents McCrometer’s latest innovation in our commitment to advancing solutions for managing water. Whether you’re a district manager looking for a solution for multiple points of water measurement, an irrigator, grower or owner operator looking for just a few points of collecting water data, or a municipal facility looking for a flanged mag meter that is durable and accurate, the Dura Mag is an ideal solution for nearly any water manager.
Key Benefits and Features
With a 5-year meter warranty and a 5-year battery warranty, the Dura Mag eliminates the need for AC power connection, and provides the easiest installation available on the market for a flanged mag flow meter. In addition, the Dura Mag comes equipped with an internal datalogger with 5 years of data storage to ensure you always have access to your historical data. The Dura Mag also has several telemetry-ready output options, and the converter settings are USB port accessible which eliminates accidental setting changes.
Dura Mag is available to fit a common range of line sizes, from 1.5” to 24” diameter pipe, and offers accuracy of +/- 1% with only 2D of upstream and 1D of downstream straight pipe required for most installations. To purchase online, see below for the most common Dura Mag options; or contact your local dealer or call the factory if you need additional options such as pulse or 4-20mA output, DC Power (10-32v), or data logger with more frequent interval.
Specifications
| 4-20mA Output Cable | No Outputs |
|---|---|
| Accessories | Ship W/Out Options |
| Accuracy | +/- 1% or 0.075% of standard full scale |
| Cable Connection | Option for quick connect cables for easy installation |
| Data Storage | Data Logger (standard with all models), minimum of five years of data stored |
| Display | 2-Line LCD display (no backlight), 16 characters per line |
| Installation Requirement | 2D Upstream / 1D Downstream (Pipe Run Requirements) |
| Line size | 06″ |
| Options | Two alarms: low battery and empty pipe |
| Outputs | Pulse Output: Digital pulse (open collector) output for volumetric and/or alarm |
| Power | Battery: Standard: two 3.6V lithium-thionyl chloride (Li-SOCI2) D size batteries. Batteries are field replaceable |
| Power/Output Options | Battery, No Outputs |
| Pressure Range | 150 psi |
| Rate unit | CFS |
| Service and Support |
|
| Temperature | Operating: -4 to 140F (-20 to 60C) |
| Unit/Rate | KGL, CFS |
| Warranty | 5 Year |
| What's included? | 30122-53 Dura Mag IOM Manual |
Filter Downloads
Frequently Asked Questions
30122-53 Dura Mag IOM Manual
30122-59 Dura Mag Spec Sheet
30122-61 Dura Mag Quick Start Installation Guide
30123-55 Dura Mag Brochure
