BL9000 Bubbler Level Sensor
SKU:
BL9K
Product Family:
Reliable Level Measurement
The Hach BL9000 Bubbler Level Sensor is a reliable solution that uses a simple tubing and bubble pressure system to determine level and depth measurements. The BL9000 provides accurate and stable level measurements and, unlike traditional level sensors, requires no external air pump, reducing complexity and maintenance needs while ensuring continuous performance. Equipped with a self-purging function that prevents clogging and debris buildup, this system minimizes maintenance while maintaining long-term accuracy in environmental challenges such as steam, foam, high temperatures, and reverse flow – all of which won’t impact the BL9000’s ability to deliver precise measurements.
Designed for measuring liquid levels in municipal and industrial flow monitoring applications, it seamlessly integrates with the Hach FL1500 Flow Logger and the Hach FL900 Ultrasonic Flow Logger.
Key Benefits and Features
Key Capabilities
- Accurate Measurement Regardless of Conditions
- Delivers precise level readings even in environments with foam, steam, and fluctuating temperatures, ensuring consistent performance.
- Low Maintenance
- Self-generated continuous bubbling system keeps the sensor line clean, eliminating the need for frequent manual maintenance.
- Seamless Logger Integration
- Designed specifically for the FL1500 Flow Logger, ensuring reliable data collection and streamlined setup for flow monitoring applications.
- No External Air Pump Required
- The integrated air bubble system maintains stable pressure for level measurement without requiring additional equipment.
- Reliable Flow Calculation
- Reports accurate level readings to the FL1500 Flow Logger, which calculates flow rates based on site-specific parameters.
- Durable and Easy to Install
- Comes with a surface-mounting bracket and a 6-foot cable, providing a straightforward installation process for new and existing monitoring sites.
With its proven accuracy, minimal maintenance, and durable design, the Hach BL9000 Bubble Level Sensor is an essential tool for wastewater treatment plants, stormwater monitoring, and industrial flow applications, delivering reliable measurements even in the toughest conditions.
*Two-week production time starts when our production facility receives the order. Any missing or technical issues for inputting order information may cause delays. Comprehensive or larger orders are subject to longer production times. Contact your seller or the factory for more information.
Features
- Accurate Measurement Regardless of Conditions
- Low Maintenance
- Seamless Logger Integration
- No External Air Pump Required
- Durable and Easy to Install
Specifications
| Accuracy | ±0.003 m (0.01 ft) at 25 °C (77 °F), factory calibration with static potable water |
|---|---|
| Air Inlets | Bubbler inlet port and reference port (with inline desiccant, 10-micron filter); |
| Bubbler line high-pressure purge | Manual or automatic at programmed intervals |
| Bubbler line requirement | 0.32 cm (1/8-in.) ID |
| Cable Length | 1.83 m (6 ft), 0.95 cm (0.375 in.) diameter |
| Certifications | CE |
| Dimensions | 10.7 × 24.1 × 12.7 cm (4.2 × 9.5 × 5.0 in.) |
| Enclosure Construction | IP 68; NEMA 4X and 6P |
| Instrument | FL1500 flow logger only |
| Material | Enclosure: PC/ABS; bubbler line connector: stainless steel; |
| Operating Temperature Range | -10 – 60 °C (14 – 140 °F) |
| Power Requirements (Voltage) | 12 VDC |
| Range | 0.003 – 3.5 m (0.01 – 11.5 ft) |
| Storage Conditions | -40 – 60 °C (-40 – 140 °F) |
| Temperature Compensation | -10 – 60 °C
14 – 140 °F
|
| Temperature Error | Within compensated temperature range: |
| Weight | 1.36 kg (3 lbs) |
Filter Downloads
| File Name | Category | Language | Size | Date | Edition | |
|---|---|---|---|---|---|---|
| BL9000 Bubble Level Flow Sensor | Data Sheets | English UK, English US | 989 KB | 2024-09 | Aug24 | |
| User Manual: BL9000 | Manuals | English US, Chinese, Danish, English UK, French, German, Italian, Japanese, Korean, Polish, Portuguese, Slovenian, Spanish, Turkish | 3 MB | 2024-10 | Ed3 | |
| FL1500 Series Flow Logger | Data Sheets | English US | 1 MB | 2024-09 | Sept24 | |
| FL900 Series Flow Logger | Data Sheets | English US | 1 MB | 2024-09 | Sept24 |
Related Products

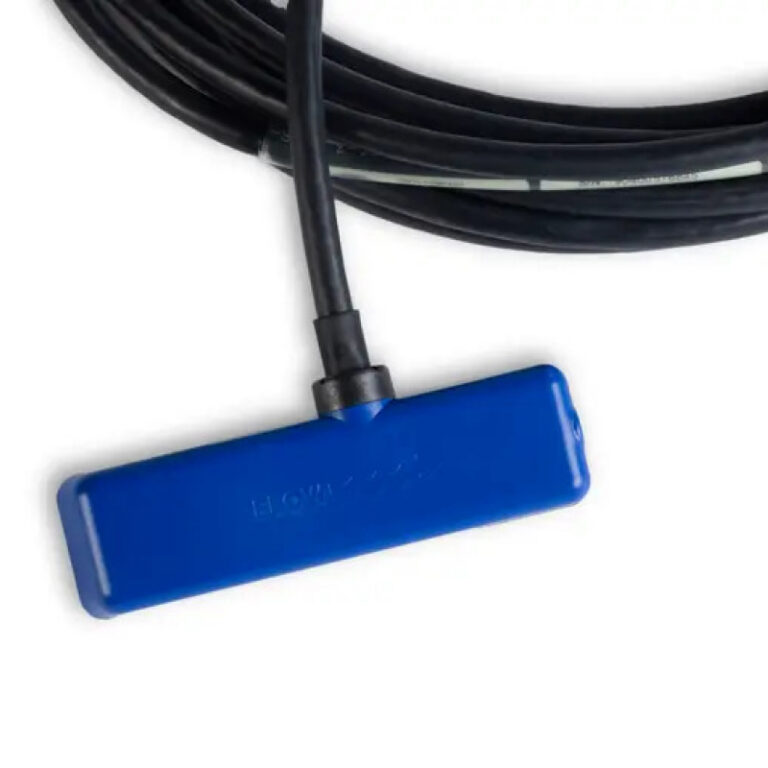

Submerged AV Sensor
